Larus-100

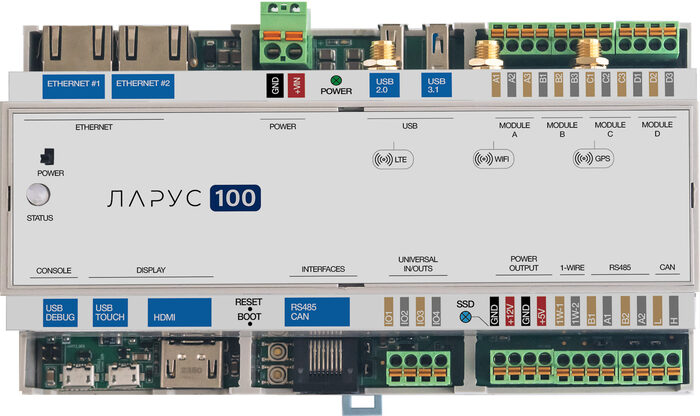

Larus-100 is a full-featured industrial controller (PLC) with a built-in Eclipse 4diac-Forte runtime based on the IEC 61499 standard. Supports plug-in I/O modules, CAN bus, RS-485, and simultaneously operates as an IIoT gateway (MQTT, OPC UA). Listed in the Russian Ministry of Industry registry as domestic equipment.
Quick Facts
| Parameter | Value |
|---|---|
| Device type | Industrial controller (PLC) + IIoT gateway |
| Power supply | 24 V DC ±20%, ≤ 15 W (without I/O modules) |
| Mounting | DIN rail 35 mm / enclosed version |
| Protection rating | IP20 (base) / IP54 (enclosed) |
| Status | 🟢 Active |
Key Features
- IEC 61499 (Eclipse 4diac-Forte) — event-driven Function Blocks, open standard, distributed applications across a network of controllers
- Up to 16 I/O expansion modules: analog inputs/outputs 4–20 mA, digital channels 24 V/220 V, thermocouples, RTDs
- RS-485 + CAN — Modbus RTU and CANopen for connecting field devices and drives
- Wireless options — Wi-Fi, Bluetooth 4.2, GLONASS/GPS, 3G/LTE as plug-in modules
- Russian Ministry of Industry registry — mandatory requirement for government-funded facilities
- Import substitution — direct replacement for Siemens S7-300/400, Schneider Modicon M340, Allen-Bradley
Technical Specifications
General Parameters
| Parameter | Value |
|---|---|
| Microprocessor | RockChip RK3568J |
| RAM | 4 GB LPDDR4 (ECC) |
| Flash memory | 16 GB eMMC |
| Storage (optional) | SSD slot up to 1 TB |
| Operating system | Linux |
| Runtime | Eclipse 4diac-Forte (IEC 61499) |
Electrical Specifications
| Parameter | Value |
|---|---|
| Supply voltage | 24 V DC ±20% (19.2–28.8 V) |
| Power consumption | ≤ 15 W (without I/O modules) |
Interfaces and Protocols
| Interface | Description |
|---|---|
| Ethernet | 2 × 1 Gbit/s |
| RS-485 | 1 × port |
| CAN | 1 × CAN |
| DI/DO (built-in) | 2 channels (discrete I/O) |
| Wireless (optional) | Wi-Fi 802.11 b/g/n, Bluetooth 4.2, GLONASS/GPS, 3G/LTE |
| Protocols | Modbus RTU/TCP, OPC UA Server + Client, MQTT (TLS), CANopen |
I/O Expansion Modules
| Module | Type | Channels |
|---|---|---|
| AI8 | Analog input | 8 × 4–20 mA / 0–10 V, 16 bit |
| AO8 | Analog output | 8 × 4–20 mA / 0–10 V |
| DI16 | Digital input | 16 × 24 V DC / 220 V AC |
| DO16 | Digital output | 16 × relay 8 A / transistor 2 A |
| TC8 | Thermocouple | 8 × K/J/T/S type |
| RTD8 | RTD | 8 × Pt100/Pt1000, 3- or 4-wire |
I/O module datasheets: AI8 | AO8 | DI16 | DO16 | RIO
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions (H × W × D), mm | 160 × 103 × 61 |
| Weight | 0.356 kg |
| Mounting | DIN rail 35 mm (EN 60715) |
| Protection rating | IP20 (base unit) / IP54 (enclosed version) |
Operating Conditions
| Parameter | Value |
|---|---|
| Operating temperature | −40…+70 °C |
Variants
| Catalog number | Description | Features |
|---|---|---|
| LRS-100 | Standard version | DIN rail 35 mm, IP20 |
| LRS-100-IP54 | Enclosed version | Metal enclosure, IP54 |
| LRS-100-EX | Explosion-proof (optional) | ATEX Zone 2, IECEx |
Certificates and Compliance
| Certificate / declaration | Number | Authority / registry | Validity |
|---|---|---|---|
| TR CU 020/2011 Declaration (EMC) | — | — | — |
| TR CU 004/2011 Declaration (LVA) | — | — | — |
| CE | — | — | — |
| Russian Ministry of Industry registry | — | minpromtorg.gov.ru | indefinite |
| Rosstandart Certificate | — | Rosstandart | — |
| IECEx (explosion protection) | — | — | optional |
Use Cases
- PLC import substitution — replacing Siemens S7-300/400 and Schneider Modicon M340 in existing APCS. ST and FBD logic is converted to IEC 61499 without full redesign.
- Oil & Gas APCS — pump unit control: PID pressure regulation, emergency interlocks via Passer-T current protection, archiving in Strix.
- Manufacturing — sequencer control of production lines with AI8/DO16 modules and MES data exchange via OPC UA.
- Energy — substation automation: CAN network of secondary devices + MQTT telemetry to dispatch center.
Compatible Devices and Accessories
| Name | Type | Purpose |
|---|---|---|
| Passer-V | Data acquisition controller | Vibration monitoring |
| Passer-T | Data acquisition controller | Electric motor monitoring |
| AI8, AO8, DI16, DO16, TC8, RTD8 | I/O modules | Analog and digital channel expansion |
| Strix | SCADA/IIoT software | Target MQTT/OPC UA platform |
| Eclipse 4diac IDE v2.x+ | Development environment | IEC 61499 application development and deployment |
Documentation and Downloads
| Document | Type | Version | Download |
|---|---|---|---|
| Datasheet | — | ↓ download | |
| User manual | — | ↓ download | |
| Technical specifications | — | ↓ download | |
| TR CU Declaration | — | ↓ download | |
| Product passport | — | ↓ download | |
| Mounting drawing | PDF/DXF | — | ↓ download |
| 3D enclosure model | STEP | — | ↓ download |
| 4diac Function Block library | ZIP | — | ↓ download |
| Firmware release notes | HTML | — | ↓ open |
Mounting Drawings
Dimensional drawing — PDF Mounting drawing — DXF
Mounting: DIN rail 35 mm (EN 60715). Expansion modules are installed to the right of the base unit and are automatically detected at power-on. Clearance: at least 25 mm above and below for ventilation.
Firmware and Software
| Version | Date | What's new | Download |
|---|---|---|---|
| — | — | — | — |
Development environment: Eclipse 4diac IDE v2.x+
4diac IDE installation guide Getting started: deploying an application to Larus-100
Migration from other PLCs:
| Replaced PLC | Migration path |
|---|---|
| Siemens S7-300/400 | FB library with TIA Portal standard block equivalents |
| Schneider Modicon M340 | Structured Text import from Unity Pro → IEC 61499 |
| ABB AC500 | OPC UA gateway mode → gradual replacement |
| Yokogawa CENTUM | Parallel operation via OPC UA Server |
Lifecycle and Support
Status: 🟢 Active (production and support) Planned EOL: not announced
Technical support:
Need monitoring only without local logic?
For data acquisition and transmission tasks without control, the simpler and more affordable Larus-10 is the right choice.
